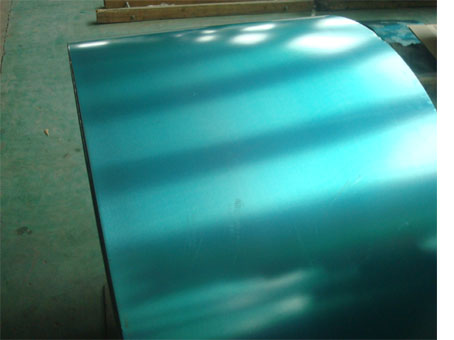

Copolymer Coated Steel Tape, consists of a steel tape coated on one/both sides with adherent ethylene copolymer either green or transparent color. The copolymer exhibits excellent adhesion to the steel substrate and has the chemical resistance and general characteristics of low-density polyethylene. The steel substrate is low carbon, electrolytic chromium coated steel tempered to T2 condition (53 +/- 3 in HR 30T) for excellent formability and fabrication characteristics. We supply copolymer coated steel tape with different thickness for fiber optic cable
|
Thickness |
Steel(mm) |
EAA(mm) |
Total one side(mm) |
Total two side(mm) |
|
0.12±0.012 0.15±0.015 0.20±0.020 0.25±0.020 |
0.058±0.013 |
0.18 0.21 0.26 0.31 |
0.24 0.27 0.32 0.37 |
|
|
Copolymer Color |
green or nature |
|||
|
Elongation at break |
≥ 15% |
|||
|
Tensile Strength |
310 ~ 390 Mpa |
|||
|
Peel Strength |
≥ 6.13 N/cm |
|||
|
Heat Seal Strength |
≥ 17.5 N/cm |
|||
|
Jumbo roll Width |
610mm, 810mm |
|||
|
Slitting Width |
12-405mm |
|||
|
Length per Roll |
2000m-4700m, according to customer's request |
|||
|
Metal Core ID |
151mm, 203mm, 406mm |
|||
|
Application |
Fiber Optic Cable |
|||
